Shock Specs

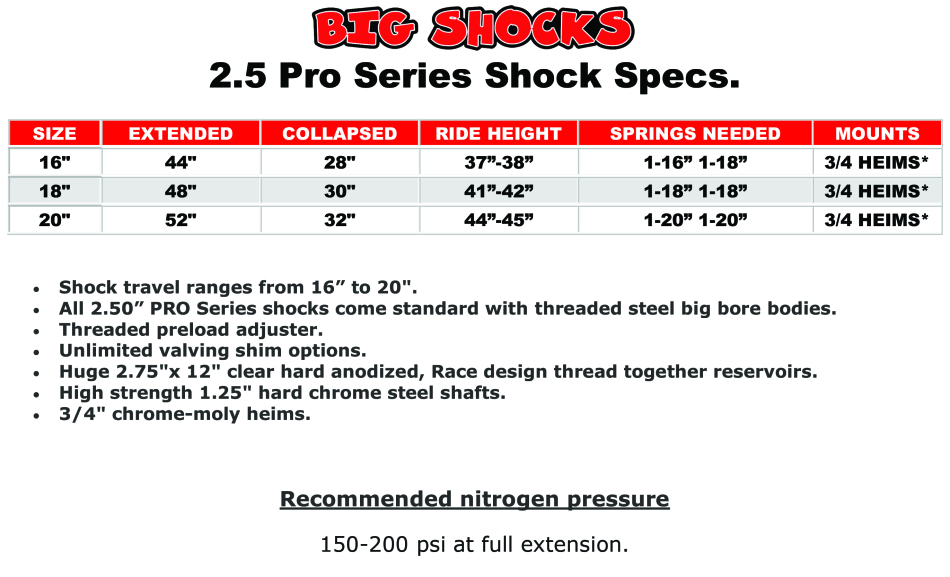

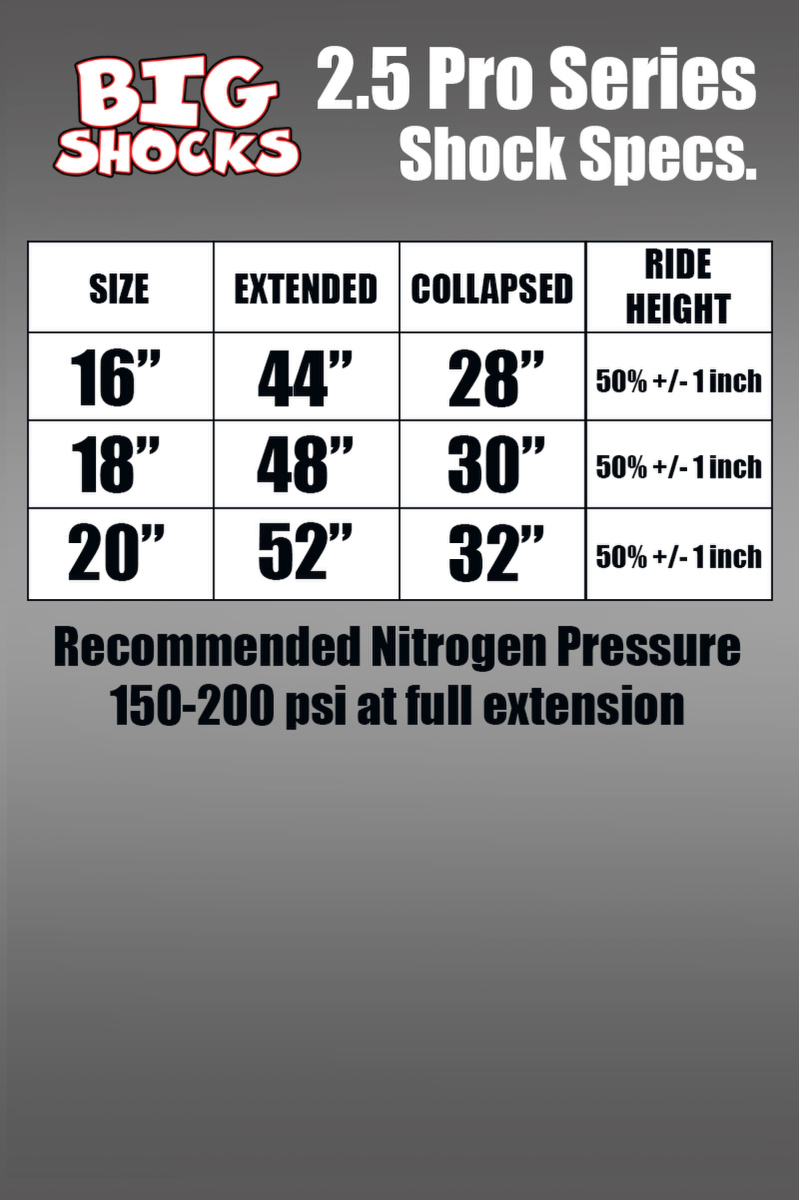

2.5 PRO SERIES Shock Specs.

SIZE

EXTENDED

COLLAPSED

RIDE HEIGHT

SPRINGS NEEDED

MOUNTS

16"

 44"

28"

 37"-38"

 1-18" 1-16"

3/4 HEIMS*

18"

48"

30"

41"-42"

1-20" 1-18"

3/4 HEIMS*

20"

52"

32"

45"- 44"

2-20" or 1-24"-1-18"

3/4 HEIMS*

2.5 Bonzi Shock Specs.

SIZE

EXTENDED

COLLAPSED

RIDE HEIGHT

SPRINGS NEEDED

MOUNTS

10"

32"

22"

28"-27"

1-12" 1-10"

5/8 HEIMS*

12"

36"

24"

31"-30"

1-14" 1-12"

5/8 HEIMS*

14"

 40"

 26"

 33"-34"

1-16" 1-14"

5/8 HEIMS*

16"

 44"

28"

 37"-38"

 1-18" 1-16"

5/8 HEIMS*

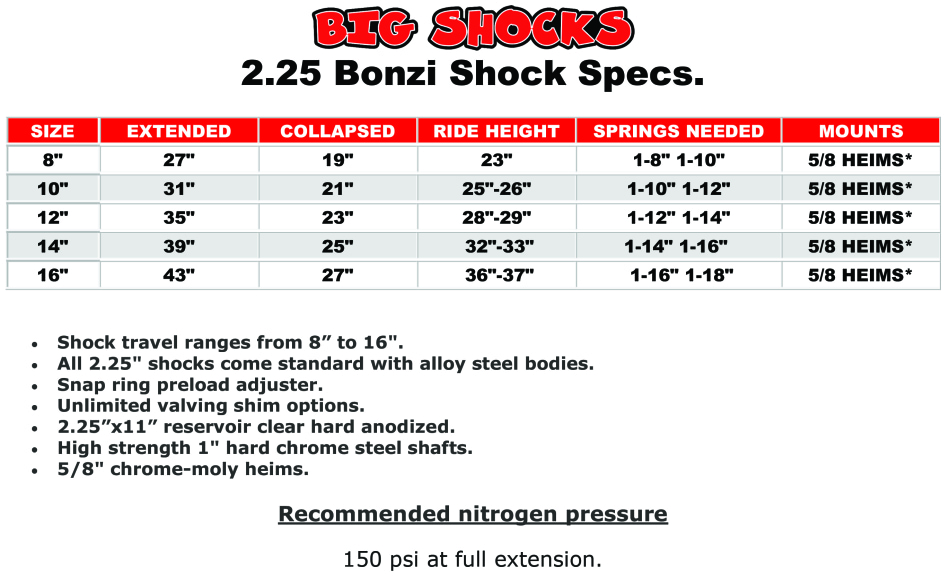

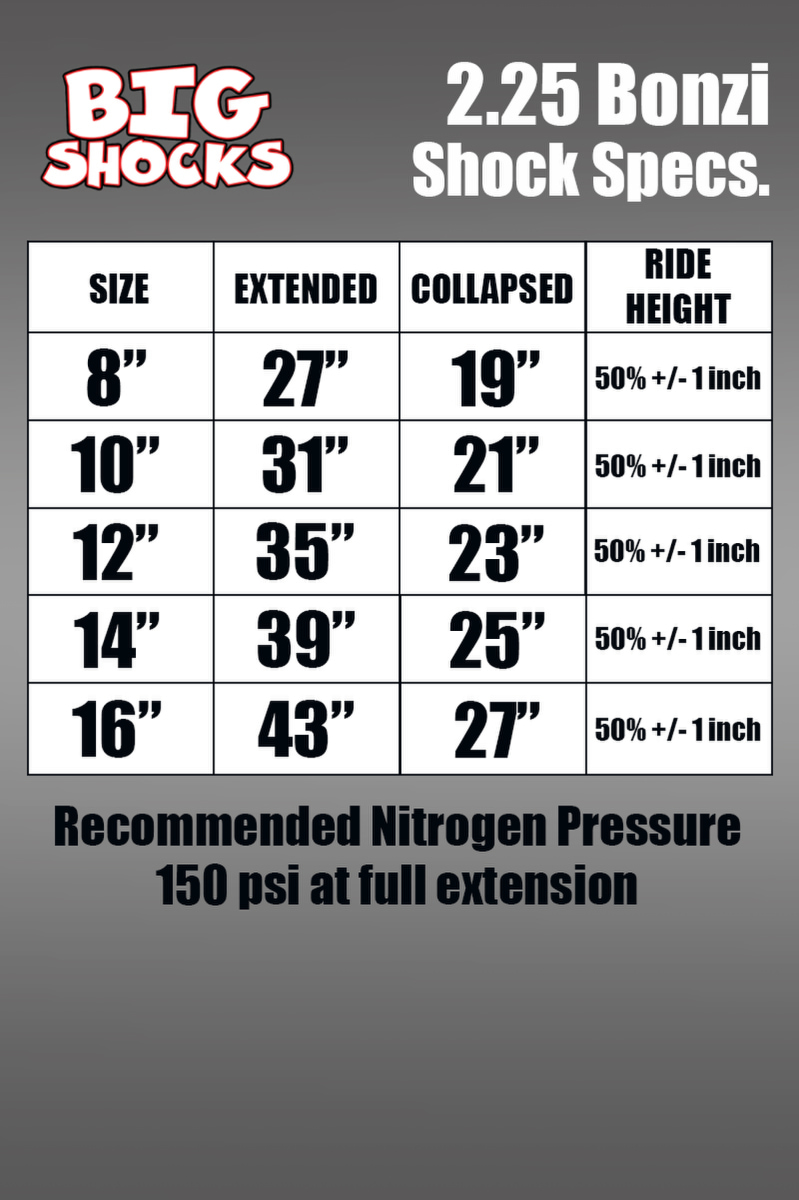

2.25 Bonzi Shock Specs.

SIZE

EXTENDED

COLLAPSED

RIDE HEIGHT

SPRINGS NEEDED

MOUNTS

8"

27"

19"

22"-23"

1-10" 1-8"

5/8 HEIMS*

10"

31"

21"

25"-26"

1-12" 1-10"

5/8 HEIMS*

12"

35"

23"

28"-29"

1-14" 1-12"

5/8 HEIMS*

14"

39"

25"

32"-33"

1-16" 1-14"

5/8 HEIMS*

16"

43"

27"

36"-37"

1-18" 1-16"

5/8 HEIMS*

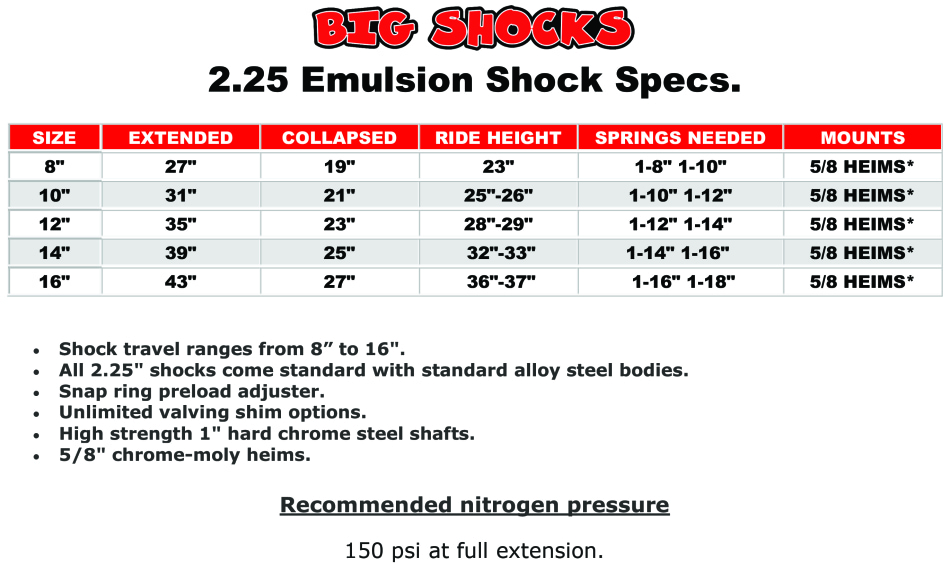

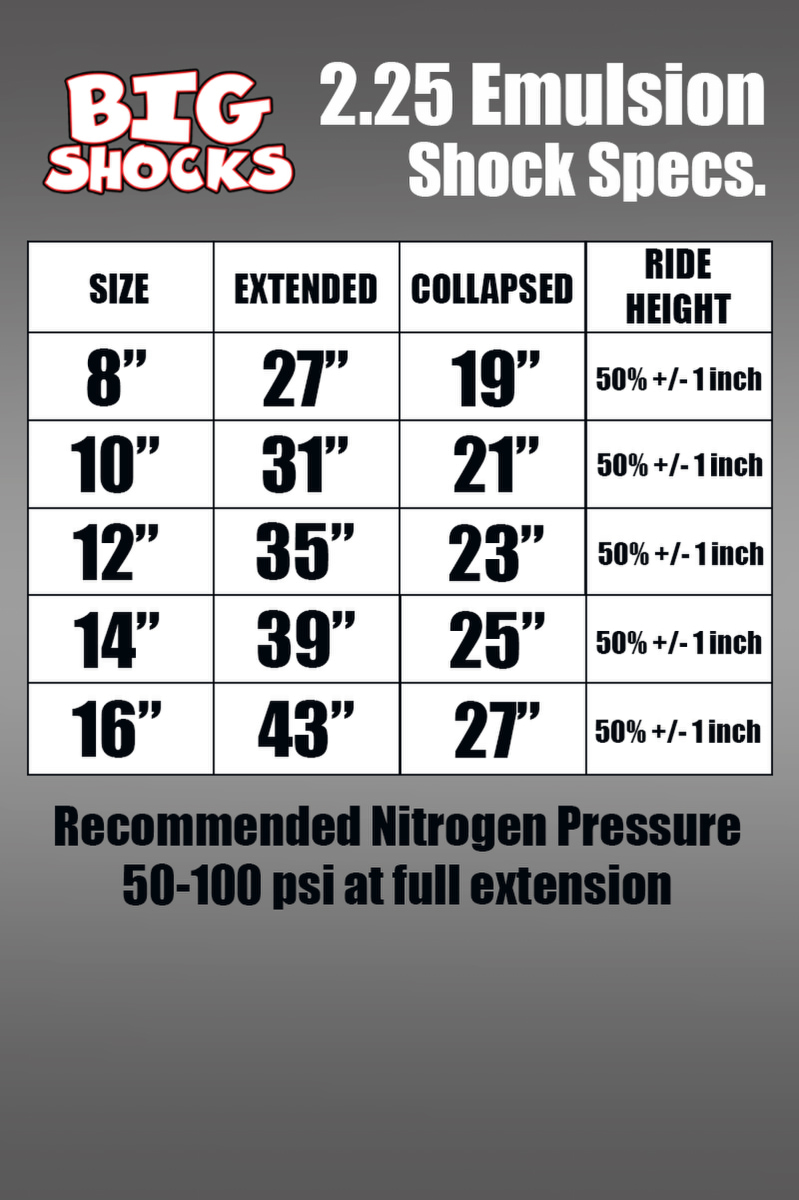

2.25 Emulision Shock Specs.

SIZE

EXTENDED

COLLAPSED

RIDE HEIGHT

SPRINGS NEEDED

MOUNTS

8"

27"

19"

22"-23"

1-10" 1-8"

5/8 HEIMS*

10"

31"

21"

 25"-26"

1-12" 1-10"

5/8 HEIMS*

12"

35"

23"

28"-29"

1-14" 1-12"

5/8 HEIMS*

14"

39"

25"

32"-33"

1-16" 1-14"

5/8 HEIMS*

16"

43"

27"

36"-37"

1-18" 1-16"

5/8 HEIMS*

2.25 Landing Gear Specs.

SIZE

EXTENDED

COLLAPSED

RIDE HEIGHT



MOUNTS

10"

31"

21"

25"-26"



5/8 HEIMS*

12"

35"

23"

28"-29"



5/8 HEIMS*

14"

39"

25"

32"-33"



5/8 HEIMS*

16"

43"

27"

36"-37"



5/8 HEIMS*



SIZE = Shock Travel

EXTENDED = Heim to Heim , shock full out

COLLAPSED = Heim to Heim , shock full in

RIDE HEIGHT = Heim to Heim , with the weight of the truck

SPRINGS NEEDED = All shock require 2 springs per shock

MOUNTS = 5/8 bolt hole standard , 1.75" wide mounting with spacers.
