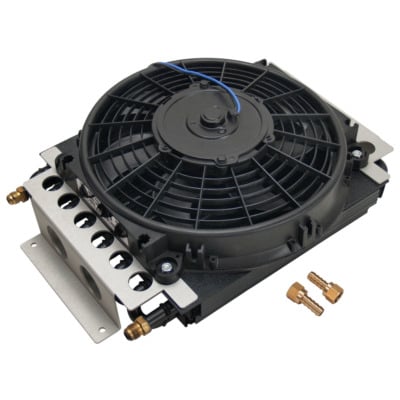

Derale 16 Pass Tube & Fin Fluid Cooler Product Description:
With its own air supply available when needed, the Electra-Cool is one of our most popular remote coolers and can literally be mounted anywhere space permits, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16-pass tube and fin cooler coupled with a powerful 10" diameter Tornado fan and aluminum brackets, and featuring -6AN male fittings, each unit also includes 2 each -6AN x 3/8" barb fittings. Designed for transmission, power steering and fuel cooling.
Cooler style: 16 pass Tube & Fin
Inlet size: -6AN
Fan size: 10"
Amp draw: 5.3
Inlet dim: 8-3/4"
Mounting: 14-3/4" x 5-1/4"
Cooler fluid capacity: 19.6 oz
Barb size: 3/8"
Airflow: Puller (reversible)
Mounts anywhere space permits
Electric fan supplies optimum airflow
Dramatically extends engine and transmission life
16 pass Tube & Fin cooler
Clear anodized aluminum shroud
650 CFM reversible Tornado electric fan
-6AN inlet size
Cooler assembly includes fan mounted cooler, two aluminum -6AN fittings and two -6AN x 3/8" hose barb fittings
