Big Shocks Orbital Valves

<< Back

Big Shocks Orbital Valves

SKU: BS4810-50

Price: $399.99
In Stock
Orbital Rating:
Quantity:


Big Shocks Orbital ValvesBig Shocks Orbital ValvesBig Shocks Orbital Valves
Big Shocks Orbital ValvesBig Shocks Orbital Valves

Big Shocks Orbital Valves Product Description:

Hose ends are -6 jic male fittings.

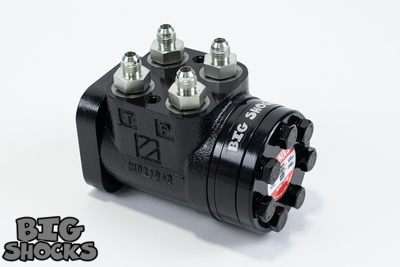

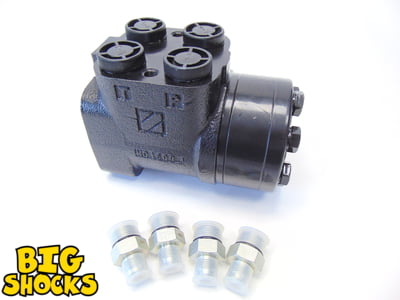

Orbital (Steering Control Valve)
All of Big Shocks’s orbitals (steering control valves) have a built in return-to-center function. This means that when the driver releases the wheel the tires will automatically return to the center position. This is a convenient feature that allows for slow rock crawling or driving at higher speeds. The amount of turns it takes to get from lock to lock will depend on what ram you combine with your orbital. We have included a chart that will tell you exactly how many turns it will take to get from lock to lock with the different orbital/ram combinations, with the recommended combinations in bold letters.
These orbitals have a maximum input pressure of 2,538 psi (17.5 MPa).

*** OFFROAD USE ONLY ***

DO NOT USE ATF OR ANY TYPE OF SYNTHETIC FLUID.

Note: Our orbitals are open center.

Orbital Rating
in ml/rev
(c.i./rev.)

2.5 i.d.

8-Inch Ram

2.5 i.d.

10-Inch Ram

125 (7.6)
3.3 Turns 4.1 Turns
160 (9.8) 2.6 Turns 3.2 Turns
200 (12.2) 2.0 Turns 2.6 Turns
