Pro Series Double Ended Steering Ram 2.5 Ton Master Kit

Pro Series Double Ended Steering Ram 2.5 Ton Master Kit

SKU: BS4840-02

Price: $1,399.95
Steering Column:
Quantity:


Pro Series Double Ended Steering Ram 2.5 Ton Master KitPro Series Double Ended Steering Ram 2.5 Ton Master KitPro Series Double Ended Steering Ram 2.5 Ton Master Kit
Pro Series Double Ended Steering Ram 2.5 Ton Master Kit

Pro Series Double Ended Steering Ram 2.5 Ton Master Kit Product Description:

  *** OFFROAD USE ONLY ***

Hydraulic Steering Kit Designed Specifically for 2.5 Ton Axles

Hose ends are -6 jic male fittings.

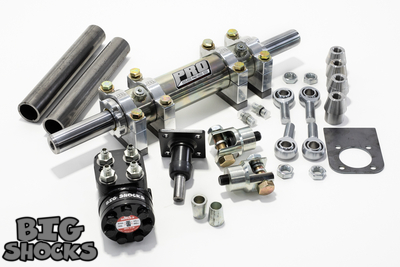

 Kit Includes:

 (1)- Big Shocks Pro Series Steering Ram, 2.5" Bore x 1.5" Shaft, 3.0" O.D. Honed D.O.M. Tubing, Double Ended Cylinder with a 8" Stroke

 (1)- 3/4" Tie Rod Kit, 11" Long 1.5" sch 80 Tubing 1.50"ID X 1.90"OD .200" Wall Thickness Tubing, 3/4" Rod Ends with Weld Bungs And Jam Nuts.

 (2)- Billet CNC Machined Big Shocks 3/4" Clevis Kit.

 (1)- Steering Column Of Choice 5" Overall Length Or 9" Overall Length

 (1)- Open Center Hydraulic Steering Orbital 7.6 CI ( 3.3 turns lock to lock. )

 (1)- Laser Cut Orbital Mount

 (2)- Extra Billet Aluminum CNC Machined Clamps

 (2)- 2.5 Ton Tie Rod End Adapters

DO NOT USE ATF OR ANY TYPE OF SYNTHETIC FLUID.



Orbital Rating
in ml/rev
(c.i./rev.)

2.5 i.d.

8-Inch Ram

2.5 i.d.

10-Inch Ram

125 (7.6)
3.3 4.1
160 (9.8) 2.6 3.2
200 (12.2) 2.0 2.6
