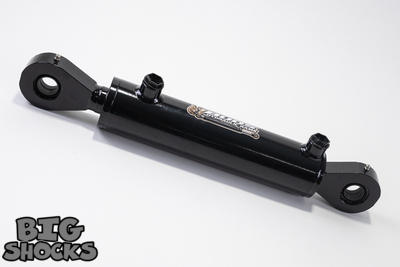

Single End 8" Steering Ram

Single End 8" Steering Ram Product Description:

Single-Ram Applications Not Recommended: While this ram can be used as a single steering ram, we strongly recommend using (2) rams for optimal steering performance and balance. Single-ram setups will have more steering turns in one direction than the other due to the ram's unequal piston-area displacement, and may provide less consistent steering performance. For the best results, use (2) steering rams.

8" stroke x 2.5" bore x 1.5" rod. 2.875" O.D. single ended cylinder.

1" Uni-Ball greaseable ends.

Machined steel ends with 1" bolt hole with replaceable uni-ball.

Hose ends are -8 ORB (3/4-16) female fittings.

Black painted finish.

Retracted (Fully Closed) 18.0"

Extended (Fully Open) 26.0"

**** Requires High Volume Hydraulic System ****

Sold Each. (1)

DO NOT USE ATF OR ANY TYPE OF SYNTHETIC FLUID.
