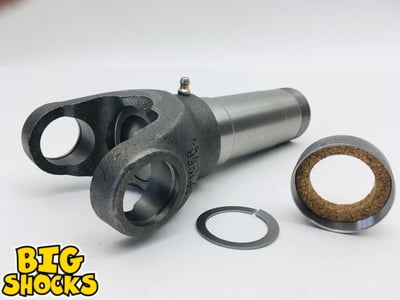

Spicer/Neapco 1350 Series Slip Yoke
Spicer/Neapco 1350 Series Slip Yoke

SKU: BS3-3-488KX

Price: $94.71
Quantity:


Spicer/Neapco 1350 Series Slip YokeSpicer/Neapco 1350 Series Slip YokeSpicer/Neapco 1350 Series Slip Yoke
Spicer/Neapco 1350 Series Slip YokeSpicer/Neapco 1350 Series Slip Yoke

Spicer/Neapco 1350 Series Slip Yoke Product Description:

 Spicer 1350 Series Slip Yoke

 1.50 X 16 Spline, 7.312 Centerline To End

General Design Type     LD-MD Driveshaft
U-Joint Series     1350
Spline Major Diameter     1.500
Spline Count     16.000
Spline Type     Parallel
Max Joint Angle     20.000

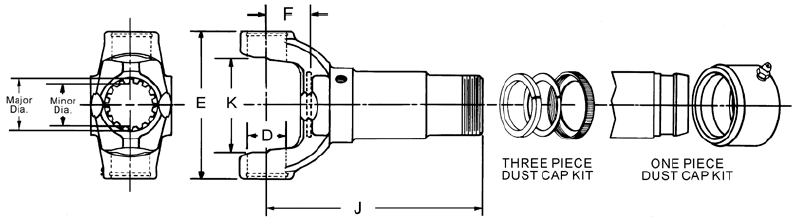

Universal Joint Retaining Width   E   3.875
Universal Joint Bearing Diameter   D   1.188
Centerline of Joint to End of Spline   J   7.312
Centerline of Joint to Face of Plug   F   1.188
Part Number of Lube Fitting     SPI-500174-1
Dust Cap & Washer Kit Number     SPI-D3A
Slip Yoke Plug part number (included)     SPI-3-68-33
Boot Kit Assembly part number (order separately)
Compatible U-Joint Kits     SPI-5-178X, SPI-5-1350X, SPI-SPL30-1X
Style     Snap Ring
