Spicer/Neapco 1410 Series End Yoke SCS FTI

SKU: BS3-4-1841-1

Price: $99.41
Spicer 1350/1410 Series Strap Kit:
Quantity:


Spicer/Neapco 1410 Series End Yoke SCS FTISpicer/Neapco 1410 Series End Yoke SCS FTISpicer/Neapco 1410 Series End Yoke SCS FTI
Spicer/Neapco 1410 Series End Yoke SCS FTISpicer/Neapco 1410 Series End Yoke SCS FTI

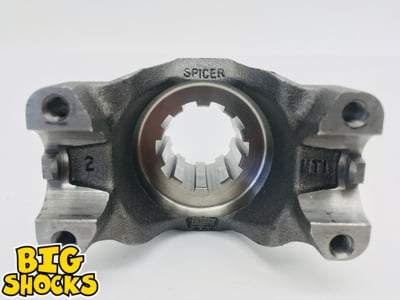

Spicer/Neapco 1410 Series End Yoke SCS FTI Product Description:

Fits SCS & FTI Transfer case 1.75-10 spline

Spicer 1410 Series End Yoke

Strap Style, Splined Bore, 1.75 X 10 Spline, 2.375 Hub Diameter

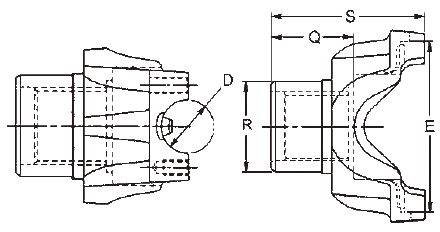

U-Joint Series     1410
Spline Major Diameter     1.750
Spline Count     10.000
Spline Type
Spline Pressure Angle
Ground Hub Diameter   R   2.375
Length Thru Bore   Q   2.188
Centerline of Joint to End of Spline   S   4.188
Universal Joint Retaining Width   E   4.188
Universal Joint Bearing Diameter   D   1.188
Counterbore Depth     0.000
Joint Angle     30.000
Style     Strap
Compatible U-Joint Kits     SPI-5-160X, SPI-5-1410X
U-Bolt or Strap Assembly     SPI-3-70-28X
Bare Yoke part number (if assembly - included)
Slinger Part Number (if assembly - included)
Notes
Cast/Forged
