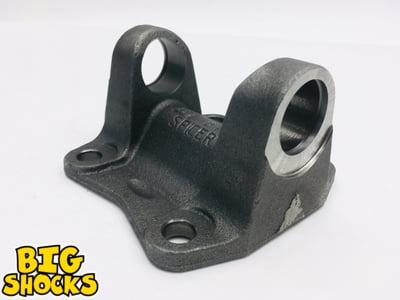

Spicer/Neapco 1410 Series Flange Yoke

Spicer/Neapco 1410 Series Flange Yoke

SKU: BS3-2-429

Price: $62.21
Quantity:


Spicer/Neapco 1410 Series Flange YokeSpicer/Neapco 1410 Series Flange YokeSpicer/Neapco 1410 Series Flange Yoke
Spicer/Neapco 1410 Series Flange YokeSpicer/Neapco 1410 Series Flange Yoke

Spicer/Neapco 1410 Series Flange Yoke Product Description:

Fits Rockwell 2.5 ton Flange.

Spicer 1410 Series Flange Yoke

 4 x .500 Holes On 4.75BC, 3.750M Pilot




Design Style     Snap Ring Design
U-Joint Series     1410
Universal Joint Retaining Width     4.438

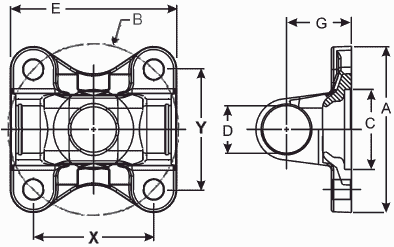

Universal Joint Bearing Diameter   D   1.188
Flange Diameter   A   5.875
Bolt Circle Diameter   B   4.750
Horizontal Distance Between Holes (center to center)     3.053
Vertical Distance Between Holes (center to center)     3.639
Bolt Hole Diameter     .500-D
Bolt Hole Quantity     4.000
Pilot Diameter (M-Male, F-Female)   C   3.750M
Centerline of Joint to Flange Face   G   2.000
Compatible U-Joint Kits     SPI-5-160X, SPI-5-1410X
    30.000
Notes
Cast/Forged     Cast
