Spicer/Neapco 1480 Series End Yoke SCS FTI

SKU: BS3-4-3121-1

Price: $147.05
Quantity:


Spicer/Neapco 1480 Series End Yoke SCS FTISpicer/Neapco 1480 Series End Yoke SCS FTISpicer/Neapco 1480 Series End Yoke SCS FTI
Spicer/Neapco 1480 Series End Yoke SCS FTISpicer/Neapco 1480 Series End Yoke SCS FTI

Spicer/Neapco 1480 Series End Yoke SCS FTI Product Description:

Fits SCS & FTI Transfer case 1.75-10 spline

Spicer 1480 Series End Yoke

U-Joint Series     1480
Spline Major Diameter     1.750
Spline Count     10.000
Spline Type
Spline Pressure Angle

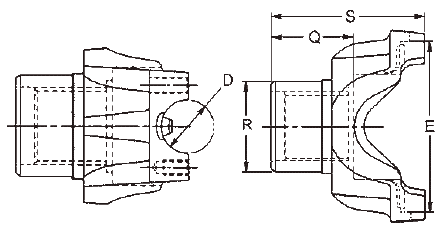

Ground Hub Diameter   R   2.625
Length Thru Bore   Q   2.250
Centerline of Joint to End of Spline   S   4.469
Universal Joint Retaining Width   E   4.188
Universal Joint Bearing Diameter   D   1.375
Counterbore Depth     0.000
Joint Angle     25.000
Style     Strap
Compatible U-Joint Kits     SPI-5-188X, SPI-SPL55X, SPI-SPL55-1X
U-Bolt or Strap Assembly     SPI-3-70-38X
