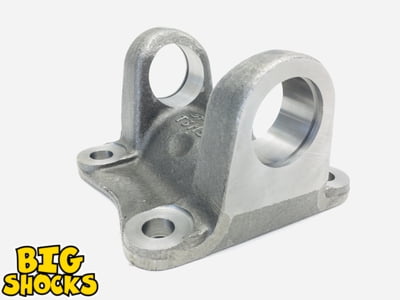

Spicer/Neapco 1480 Series Flange Yoke

SKU: BS3-2-479

Price: $98.99
Quantity:


Spicer/Neapco 1480 Series Flange YokeSpicer/Neapco 1480 Series Flange YokeSpicer/Neapco 1480 Series Flange Yoke
Spicer/Neapco 1480 Series Flange YokeSpicer/Neapco 1480 Series Flange Yoke

Spicer/Neapco 1480 Series Flange Yoke Product Description:

Fits Rockwell 2.5 ton Flange.

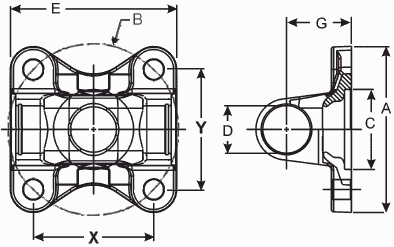

Spicer 1480 Series Flange Yoke



Design Style     Snap Ring Design
U-Joint Series     1480
Universal Joint Retaining Width     4.438
Universal Joint Bearing Diameter   D   1.375
Flange Diameter   A   5.750
Bolt Circle Diameter   B   4.750
Horizontal Distance Between Holes (center to center)     3.053
Vertical Distance Between Holes (center to center)     3.639
Bolt Hole Diameter     .500-D
Bolt Hole Quantity     4.000
Pilot Diameter (M-Male, F-Female)   C   3.750M
Centerline of Joint to Flange Face   G   2.000
Compatible U-Joint Kits     SPI-5-188X, SPI-SPL55X, SPI-SPL55-1X
    20.000
Notes
Cast/Forged     Cast
