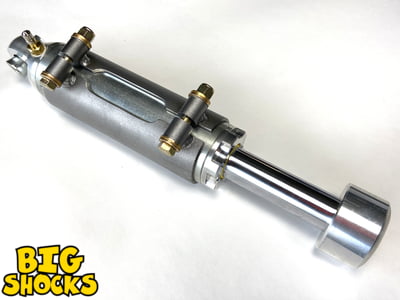

Big Shocks "Trophy Truck Style Bumps". Retained with a shock top style 1/2" bolt 1.75" wide with a standard steel weld in mounting can. 2-1/2" d.o.m alloy steel plated body. 1-1/4" Shafts with a 100,000 lb. tensile strength. All thread together (no snap rings) Aluminum bump pads, 4" stroke. Note* Schrader valve must be removed to install or remove bump stop.
Made in USA
SOLD EACH (1) BUMP STOP
Shipped with NO pressure in them. You need to charge them with shop air or nitrogen.
10% of corner weight baseline.
600 lbs corner weight - 60 psi
800 lbs corner weight - 80 psi
1000 lbs corner weight - 100 psi
1300 lbs corner weight - 130 psi
