Pro Series Double Ended Steering Ram Kit Dana 44/60

Pro Series Double Ended Steering Ram Kit Dana 44/60 Product Description:

  *** OFFROAD USE ONLY ***

Hydraulic Steering Kit Designed Specifically for Dana 44/60 Axles

Hose ends are -6 jic male fittings.

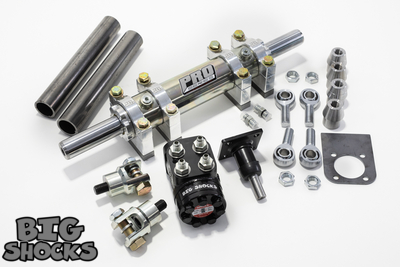

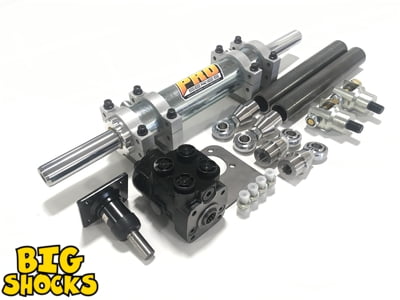

 Kit Includes:

 (1)- Big Shocks Pro Series Steering Ram, 2.5" Bore x 1.5" Shaft, 3.0" O.D. Honed D.O.M. Tubing, Double Ended Cylinder with a 8" Stroke

 (1)- 3/4" Tie Rod Kit, 11" Long 1.5" sch 80 Tubing 1.50"ID X 1.90"OD .200" Wall Thickness, 3/4" Rod Ends And Jam Nuts

 (2)- Billet CNC Machined Big Shocks 3/4" Clevis Kit

 (1)- Steering Column Of Choice 5" Overall Length Or 9" Overall Length

 (1)- Open Center Hydraulic Steering Orbital 7.6 CI ( 3.3 turns lock to lock )

 (1)- Laser Cut Orbital Mount

 (2)- Extra Billet Aluminum CNC Machined Clamps

 DO NOT USE ATF OR ANY TYPE OF SYNTHETIC FLUID.
