Big Shocks 20" Arm. 1.75" Splined Sway Bar Kit.
Big Shocks 20" Arm. 1.75" Splined Sway Bar Kit.

SKU: BS1.75SPL-20KIT

Price: $1,063.50
Link Tubing:
Sway Bar Link Bolt Kit:

Custom Bar Length (up to 44") *

Quantity:


Big Shocks 20" Arm. 1.75" Splined Sway Bar Kit.Big Shocks 20" Arm. 1.75" Splined Sway Bar Kit.Big Shocks 20" Arm. 1.75" Splined Sway Bar Kit.
Big Shocks 20" Arm. 1.75" Splined Sway Bar Kit.Big Shocks 20" Arm. 1.75" Splined Sway Bar Kit.Big Shocks 20" Arm. 1.75" Splined Sway Bar Kit.

Big Shocks 20" Arm. 1.75" Splined Sway Bar Kit. Product Description:

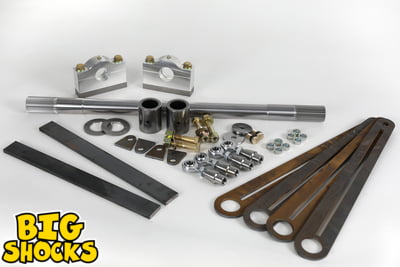

  • Big Shocks Splined D.I.Y. 1.75" Sway Bar kit.
  • Custom 1/4" thick A-36 Temper Plate 20" long laser cut arms with 3/8" thick I-Beam design,
  • Billet 6061 Aluminum 2 pc. mounting blocks with grease fittings,
  • SCS 1 3/4-27 splined bar and weld couplers,
  • 5/8" Chrome-moly Heim kits for 1" ID tubing.
  • All mis-alignment bushings and laser cut tabs for lower heims.
  • WELDING REQUIRED 24" Tubing for links optional.

This is a SCS Sway Bar.  Takes 2 weeks to have cut & splined. Need overall bar length for ordering.

1.75" Full size heavy truck (front and rear) or single bar on some full size trucks

Recommend 2 bars for best handling and safety.
